The standard dosing range D07 meets the dosing requirements for flow rates from 5 to 700 l/h.
- Proportional dosing and without electricity
- Proportionality dependent on water flow
- Compact ergonomics
- Outlet injection
Instructions included

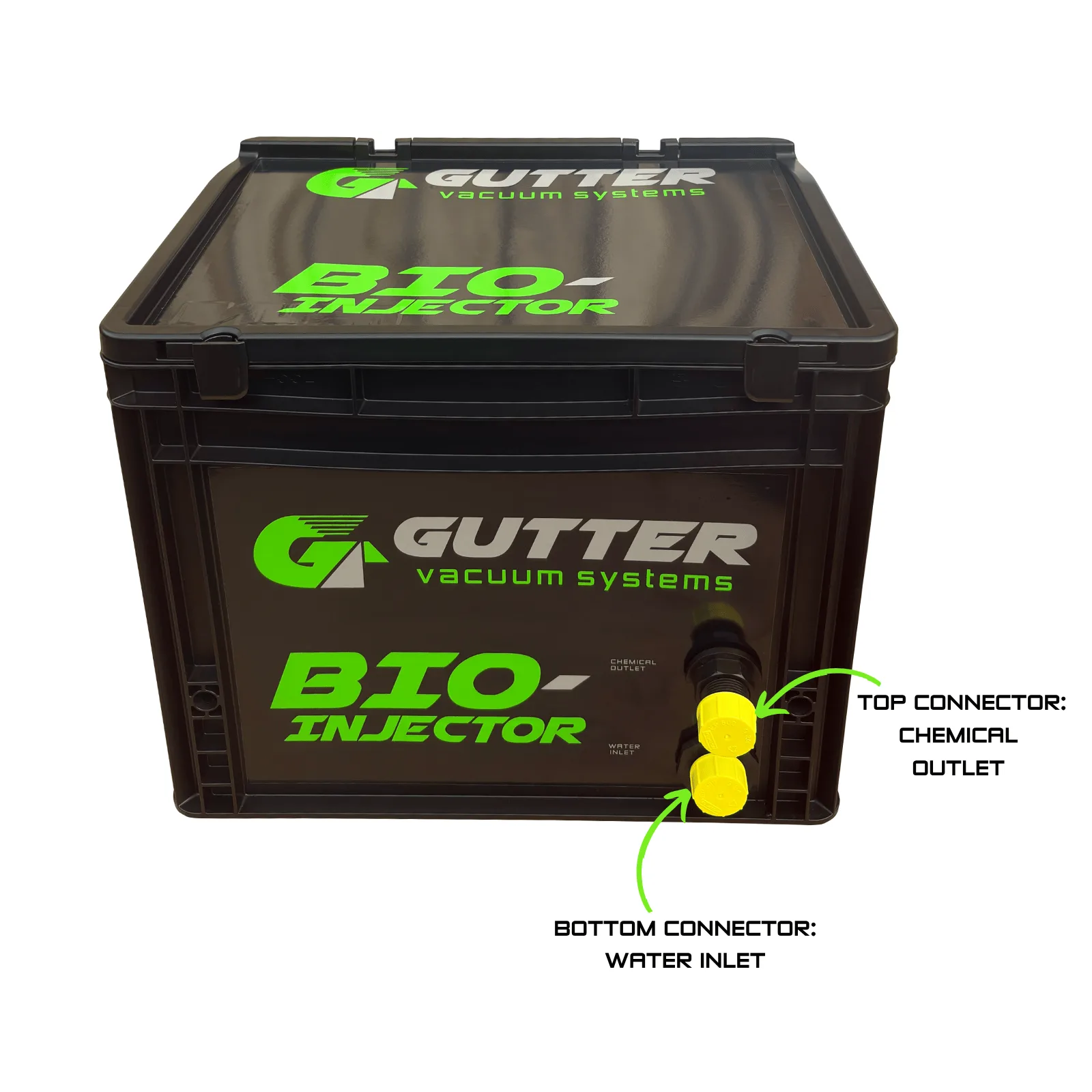

- Connections – male tap connectors:
- Water inlet – bottom connector
- Chemical outlet – top connector
Specifications:
- Injection range 0.8 – 5.5% [1:128 – 1:18]
- Water flow range 5 l/h – 0.7 m3/h
- Operating water pressure 0.3 – 6 bar
- Concentrated additive injection 0.8 l/h – 38.5 l/h
- Stroke volume ~ 0.225 l
- Weight: 4.46kg
- Dimensions: 34cm (H) x 32cm (W) x 41cm (L)
